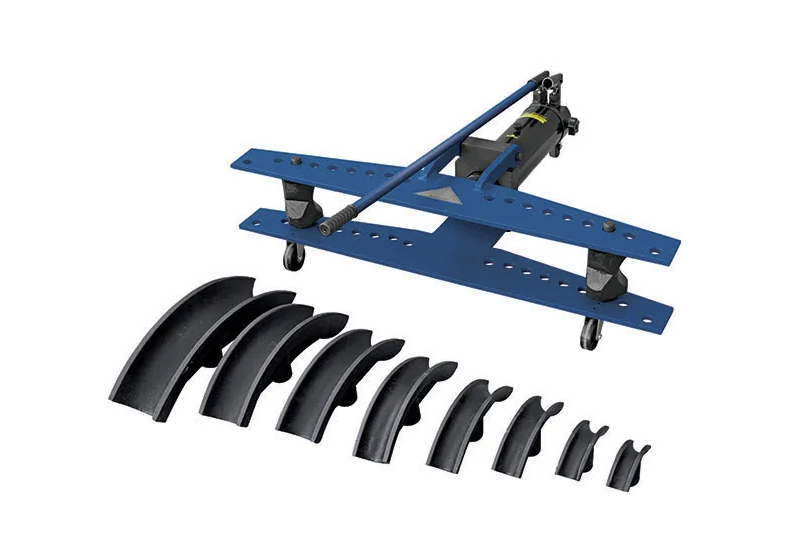

ITM 1/2″ TO 3″ HYDRAULIC PIPE BENDER

Suitable for Carbon Steel and Wrought Iron Pipe
Ø1/2” – Ø3” NB pipe capacity
1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3” cast steel formers
0° to 90° Bending angle
20,000kg Force capacity
290mm Stroke

Capable of bending angles from 0° to 90°
Cold bending, no pre-warming or pipe is required
Heavy duty castors
Flip over top frame to easily remove bent pipe
2 stage heavy duty hydraulic pumping system
Longer piston stroke per pump and optimized hand force minimises operator fatique
Supplied in wooden case
